ข้อต่อสายลม Fitting
ONE-TOUCH TUBE FITTINGS
One-touch tube fittings are used in pneumatic piping.
The tube fittings come in a wide variety of models to meet all your needs in pneumatic piping.
Even after installation, the direction of the tube can be changed freely.

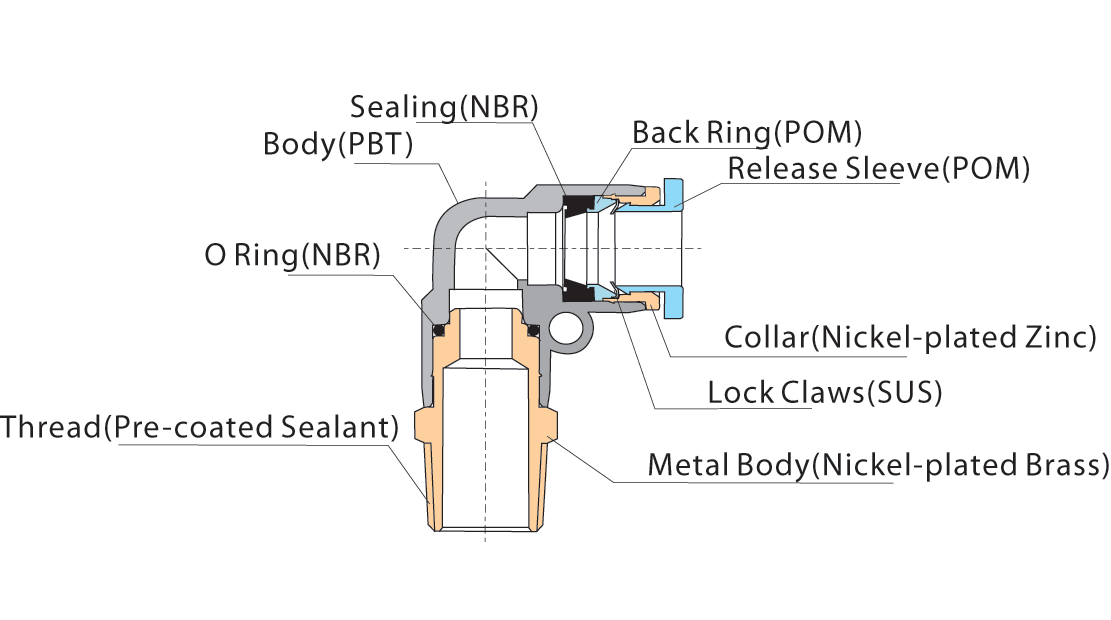

Nickel-pated metal body ensures anti-corrosion and anti-contamination.
All R and NPT threads are pre-coated sealant.
| Fluid Type | Air (No other type of gas or liquid) | |
| Working Pressure Range | 0~150PSI | 0~9.9KgF/cm2(0~990KPa) |
| Negative Pressure | -29.5 in Hg | -750mm Hg(10 Torr) |
| Working Temperature | 32~140°F | 0-60℃ |
(1) Model Type (2) Tube Outer Dia
(3) Tread Size
| Metric Tube | Metric Tube | Taper pipe Thred | ||||||||||||
| Code | 04 | 06 | 08 | 10 | 12 | 16 | Code | M5 | M6 | 01 | 02 | 03 | 04 | |
| Size(mm) | Φ4 | Φ6 | Φ8 | Φ10 | Φ12 | Φ16 | Size(mm) | M5X0.8 | M6X1.0 | R1/8 | R1/4 | R3/8 | R1/2 | |
| InchTube | UNF Thread | Taper pipe Thred | |||||||||||
| Code | 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 | Code | U | N1 | N2 | N3 | N4 | |
| Size(mm) | Φ5/32 | Φ3/16 | Φ1/4 | Φ5/16 | Φ3/8 | Φ1/2 | Size(mm) | 10-32UNF | NPT1/8 | NPT1/4 | NPT3/8 | NPT1/2 | |
When (2) is thread size, choose thread size from (3). When (3) is tube diameter, choose tube diameter from(2).
(4) Body Color Code
No Code: Black Color
C:Grey Color
